Product Description

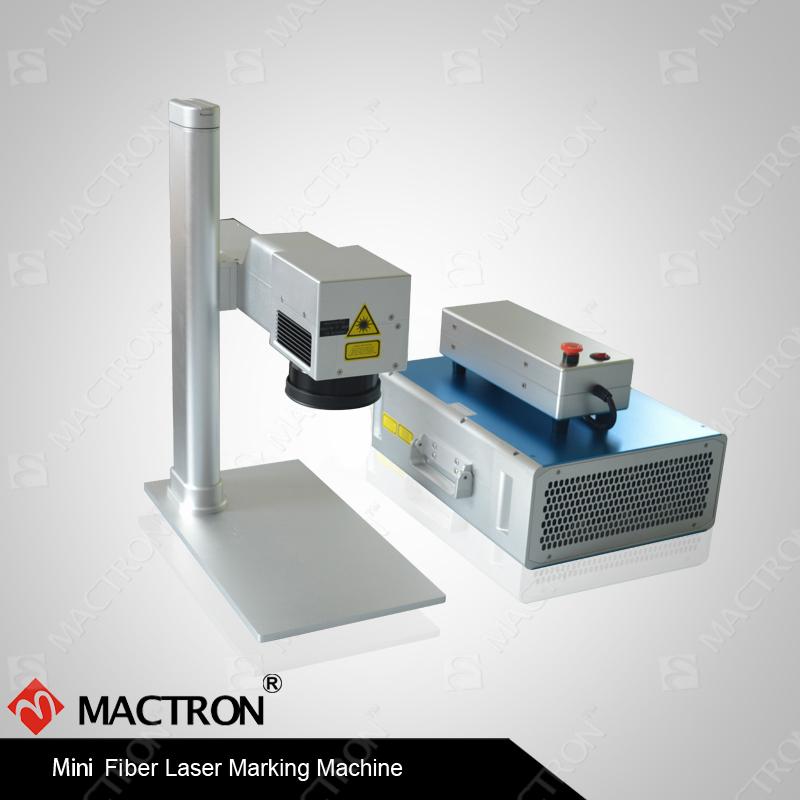

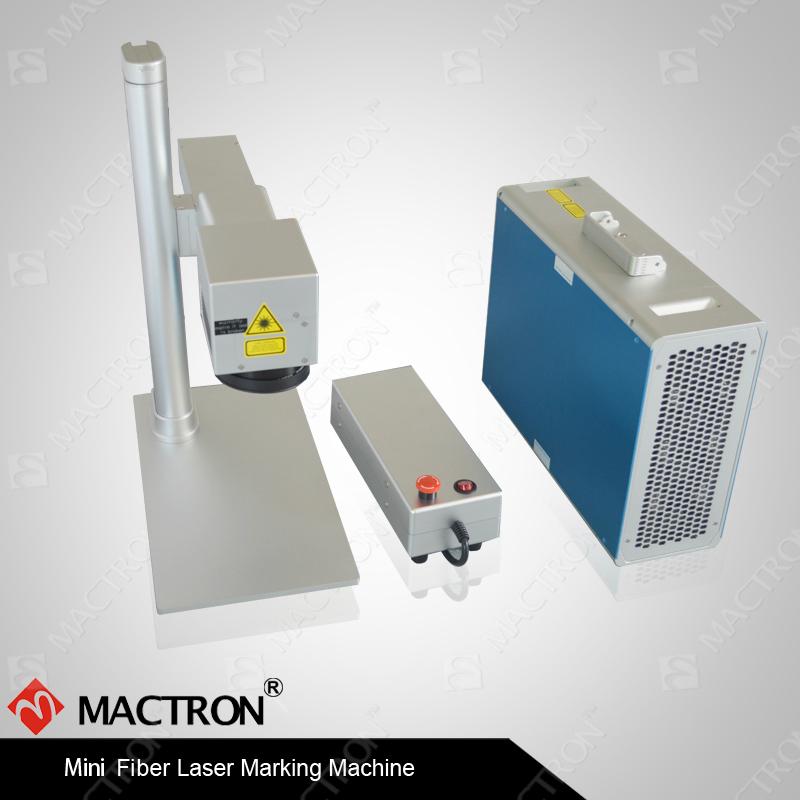

NEW Style Mini 20W fiber laser marking machine price For Metal Marking ---Blue Colour

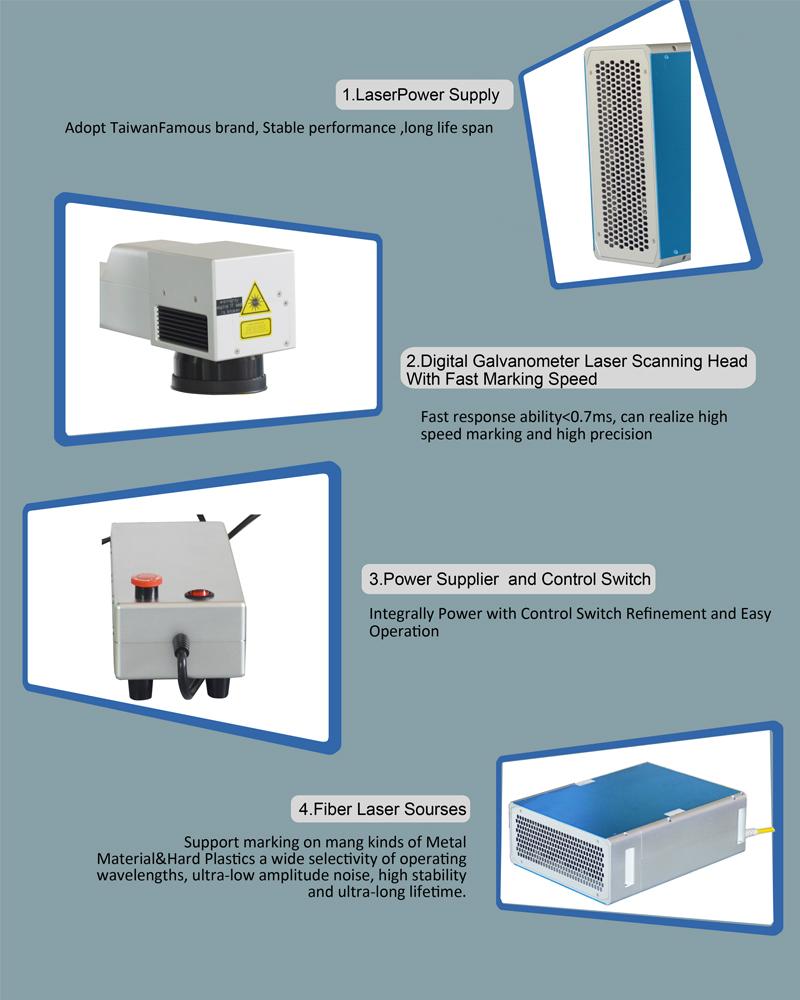

MT-MP series portable laser marker adopts advanced digital high speed scan galvanometer and module design that separate laser generator and lifter, which is not only small volume, quick speed, but easily marks on big objects surface.

1. Features:

1.  The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. This design highly increase the machine's anti-reflection ability, be able to mark on aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

2.  Adopts advanced digital high speed scanning galvanometer, small volume, quick speed, good stability, performance reached the international advanced level.

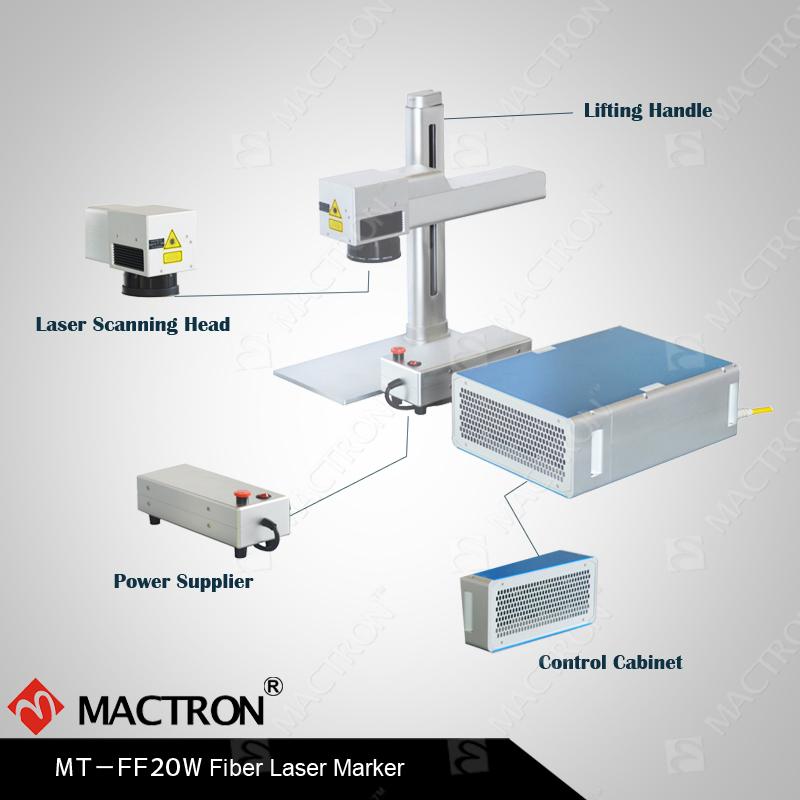

3.  Modular design, separate laser generator and lifter, more flexible, can marker on bigger area and complicated surface.

4.  Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control system, can meet the demand of most industry application process in market.

5.  Adopt special flying marking control system, with good performance and easy operation.

Laser Type	Fiber Lasers
Wavelength	1064nm
Laser Pulse Frequency	20-80Khz
Beam Quality	<1.4M2
Peak Laser Power	5W/10W/20W/30W
Marking Speed	<9000MM/S
Marking Depth	<=0.3MM
Repetition Precision	±0.01MM
Min. Line Width	0.02MM
Min. Character	0.2MM
Cooling Mode	Air Cooling
Graphic Formats Supported	PLT. DST. AI. DXF. BMP.JPG.CAD. CDR. DWG
Power Source	AC 110/220V±10%, 50/60Hz
Working Temperature	10-35 C
Working Humidity	<75%(No condensation)
Working Environment	Clean. free of dust
Gross Power	<1000W
Safety Protection Class	IP54
Laser Generator Safety Class	IV
Adjustable Height Direction(Upper surface)	550-1200MM
Adjustable Height Direction(Side)	400-1500MM
Front And Back Direction Adjustable Distance	0-200MM
Marking Angles	Any Angles



2.Applicable industries:

the equipment is widely used in food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, electronics and other industries, low consumption, non-toxic, no pollution.

3.Applicable materials:

Plastic, stainless steel, aluminum and other metal surface marking.


4.Quotation

Portable Fiber Laser Marking Machine, Model MT-MP20(Whole Machine Warranty 1 year)

Marking Area:110*110MM Max Photonics High Quality Fiber Laser Module 20W (Warranty 1 year) High Speed and Precision Galvo Scanner Marking head Max Photonics ECZAD Laser Marking Software Tablet Computer  Singapore Imported F-theta Lens

EXW 5000USD



5.Optional Parts



80mm diameter rotary device is optional. The rotary device cost is 250usd/pcs. For Details, please click the links as below:



80MM Diameter Rotary Device

80MM Diameter Rotary Device







Price Terms︰ Door to Door By DHL

Payment Terms︰ TT, Western Union, Moneygram

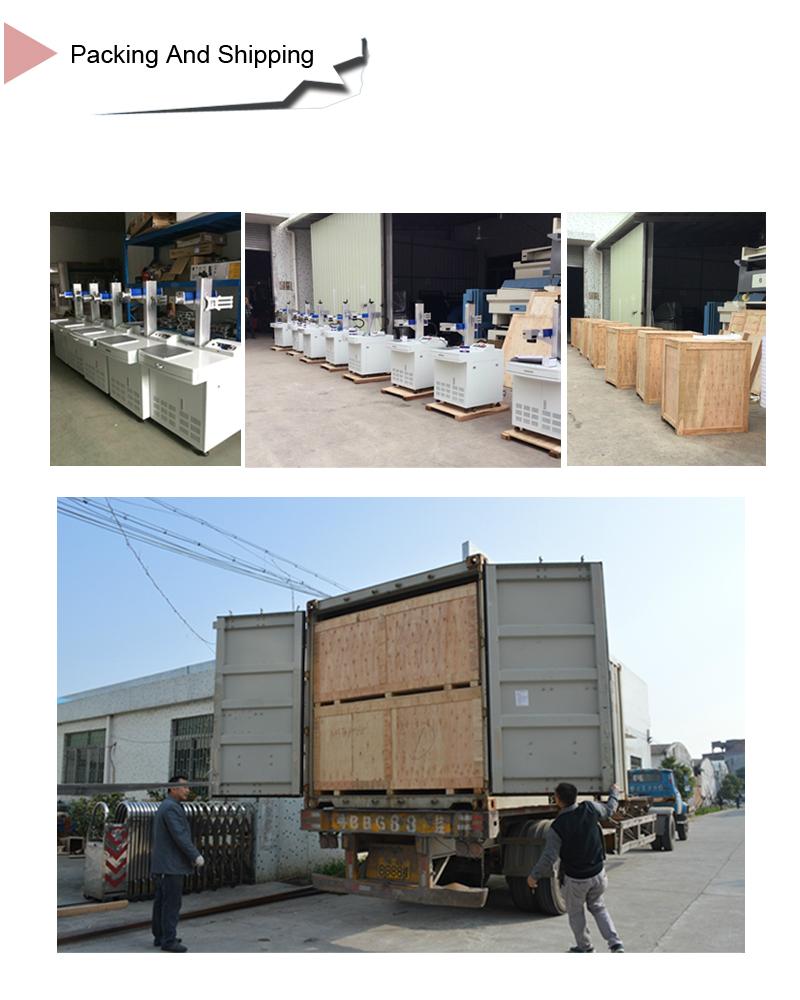

Packing︰ Standard export wooden case

Lead Time︰ 7 days after payments received
