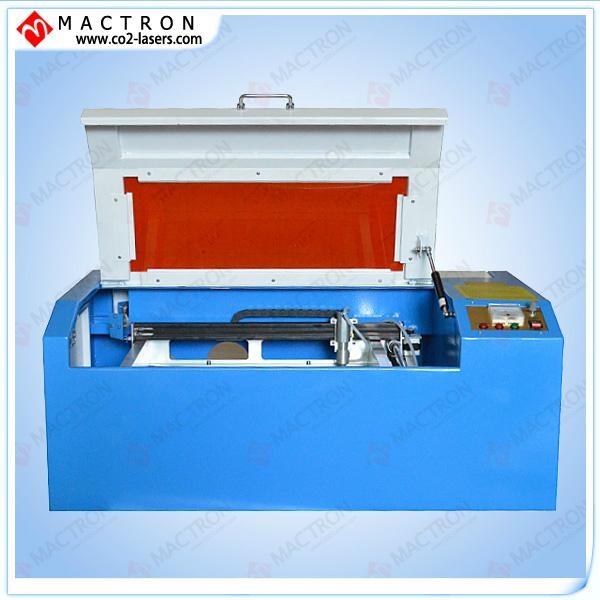

It is a kind of laser engraving machine for carving stamp and craftwork. The machine is used to engrave the seal, the small breadth arts and crafts and the gift. It can engraving on the materials: Organic Glass, Acrylic, Leather, PVC, Wood, and Plastic. High quality laser parts with long Life-span, it makes high resolution products. It can connect with printer, scanning and some office appliances.
Model : MT-3060U
Communication Interface : USB2.0
Engraving Area : 320 X600mm /11.81x16.54in.
Engraving Speed : 500mm/s / 19.5in./s
Engraving Depth(arylic) : 5mm / 0.21in
Cutting Depth(arylic) : 0-8mm / 0-0.157in.
Up and down work table : Electric Motor Honeycomb table Up and down 0-50mm
Laser Power : 40W-50W
Driving Method : Step Motor
Resolution Ratio : 0.0254mm/0.001in. (1000dpi)
Power Supply : 220V(or110V)+/-10% 50HZ
Operating Temperature : 0℃-45℃
Operating Humidity : 35-70
Operation System : Windows98/ME/2000/XP/VISTA
Graphic Format Supported : PLT,DXF,BMP,JPG,GIF,PGN,TIF
Engraver For Curve Surfaces(Yes/No) : No
Water Cooling(Yes/No) : Yes
Laser Tube(life hours) : 1000-1200 Hours
Recommended Spare Parts/Consum Ables : Laser Tube
|
